Product details:

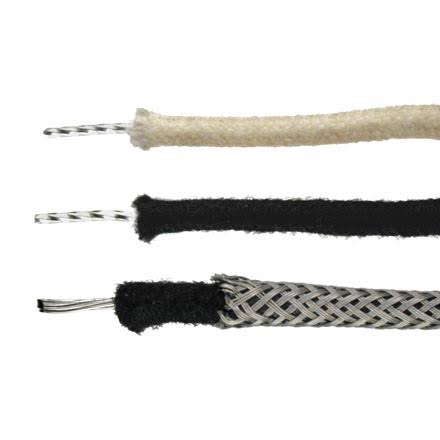

These kits make it easy to order premium components for wiring your Gibson SG. CTS push-pull pots split the coils of humbuckers for single-coil operation. For humbucking pickups with series link access (3 wire, 5 wire, etc). Complete with wiring diagram, this kit features trusted components used for decades in Gibson and other iconic American instruments, such as Switchcraft toggle switch and jack, CTS potentiometers, Orange Drop capacitors and cloth-covered push-back wire. Be sure your control knobs will fit: CTS pots in this kit have fine-knurled (24-spline) split shafts. Coarse-knurled knobs for imported Alpha pots wont fit. Premium Wiring Kit for Gibson SG includes: 1/4 inch Switchcraft long-thread output jack (1) 500K-ohm CTS control pots (4 total: 2 regular, 2 push-pull) .022uF Orange Drop capacitors (2) Switchcraft 3-way right-angle switch (1) Amber switch knob (1) Non-shielded cloth-insulated push-back circuit wire: 22 AWG, white, 12 inch long Non-shielded cloth-insulated push-back circuit wire: 22 AWG, black, 24 inch long Shielded braided push-back circuit wire: 22 AWG, 12 inch long Wiring diagram CTS control pot specifications: Shaft diameter: 0.235 inch (5.95mm) split shaft, fine knurling Thread: 3/8 inch x 32 Thread height: 3/8 inch (9.52mm) Required mounting hole diameter: 3/8 inch (9.52mm) Required cavity depth: 1-3/16 inch (30.16mm) Switchcraft 3-way right-angle switch specifications: Switch length: 2 inch (50.80mm) Body cavity depth required: 13/16 inch (20.64mm) Mounting hole diameter: 1/2 inch (12.70mm) Thread height: 3/16 inch (4.76mm) NOTE: Requires at least 1-3/4 inch (44.45mm) from the center of the mounting hole to the edge of the control cavity for wiring clearance
